> >>>M.B. GIGABYTE B460 AORUS PRO AC (LGA1200) (Intel® Core ™ de 10a generación)
¡Precio rebajado! M.B. GIGABYTE B460 AORUS PRO AC (LGA1200) (Intel® Core ™ de 10a generación) Ver más grande
Anterior Siguiente

M.B. GIGABYTE B460 AORUS PRO AC (LGA1200) (Intel® Core ™ de 10a generación)

B460 AORUS PRO AC

Nuevo

Intel ® B460 AORUS placa base con Direct 8 + 2 Fase VRM Diseño Digital, Diseño térmico avanzado con ampliada del disipador de calor, doble ultrarrápido NVMe PCIe x4 con M.2 3.0 Protecciones térmicas, Intel ®  802.11ac Wave2 2T2R WiFi y BT 5, Intel ® LAN de 2.5 GbE, USB 3.2 Gen2 Type-C ™, RGB FUSION 2.0

  • Admite procesadores de la serie Intel® Core ™ de décima generación
  • Solución VRM digital directa de 8 + 2 fases
  • DDR4 sin búfer no ECC de doble canal, 4 DIMM
  • Diseño térmico avanzado con disipador de calor ampliado
  • Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
  • NVMe PCIe 3.0 x4 M.2 ultrarrápido dual con protectores térmicos
  • Intel ®  802.11ac Wave2 2T2R WiFi y BT 5
  • Blazing Fast Intel ® 2.5 GbE LAN con cFosSpeed
  • Intel ® USB 3.2 Gen2 tipo C Support ™
  • Audio ALC 1220 120dB SNR HD con capacitores de audio WIMA y Nichicon MW
  • RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras de LED direccionables y RGB
  • Instalación fácil y rápida: IO Shield preinstalado
  • Q-Flash Plus actualiza el BIOS sin instalar la CPU 、 Tarjeta de memoria y gráfica
  • Intel ® Memoria Ready ™ Optane

Más detalles

$ 169,900 I.V.A. incluido

-$ 28,800

$ 198,700 I.V.A. incluido

$ 175,846 por PAGO DEBITO / CREDITO / WEBPAY

Más información

  • CPU
    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    2. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® B460 Express Chipset
  • Memory
    1. Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz
    2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz
    3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer to "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    Maximum shared memory of 512 MB
  • Audio
    1. Realtek® ALC1220-VB codec
      * The back panel line out jack supports DSD audio.
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module
    Intel® Wi-Fi 9260
    1. Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.0
    3. Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
    3. 3 x PCI Express x1 slots
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    Supports up to ASPM L1.2 power management protocols.
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
    3. 6 x SATA 6Gb/s connectors
    4. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the PCIEX4, M.2, SATA connectors.
    5. Intel® Optane™ Memory Ready
      * System Acceleration with Intel® Optane™ Memory enabled on the M2Q_SB connector only.
    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
  • USB
    Chipset+ASMedia® USB 3.2 Gen 2 Controller:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    Chipset:
    1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    2. 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+USB 2.0 Hub:
    1. 2 x USB 2.0/1.1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 6 x SATA 6Gb/s connectors
    9. 2 x M.2 Socket 3 connectors
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x S/PDIF Out header
    13. 1 x USB 3.2 Gen 1 header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    16. 2 x Thunderbolt™ add-in card connectors
    17. 1 x Clear CMOS jumper
    18. 1 x Q-Flash Plus button

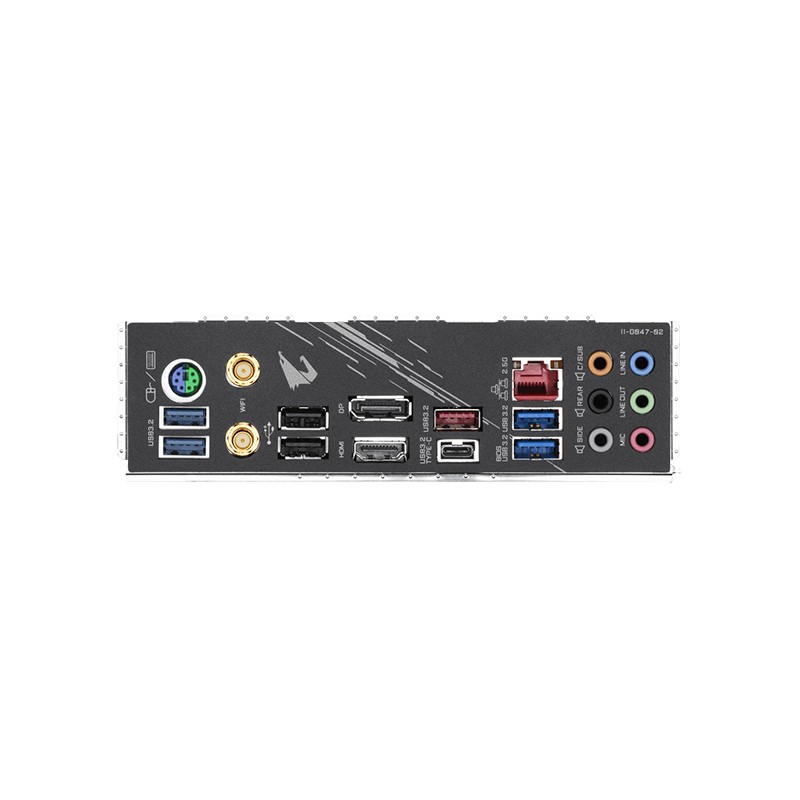

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 2 x SMA antenna connectors (2T2R)
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 4 x USB 3.2 Gen 1 ports
    8. 2 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 6 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
