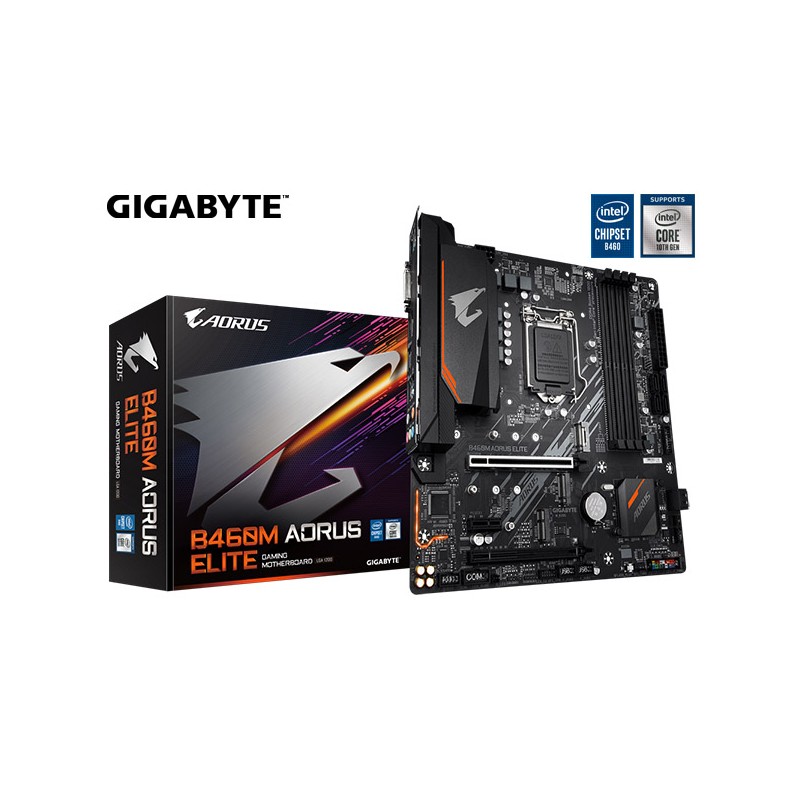

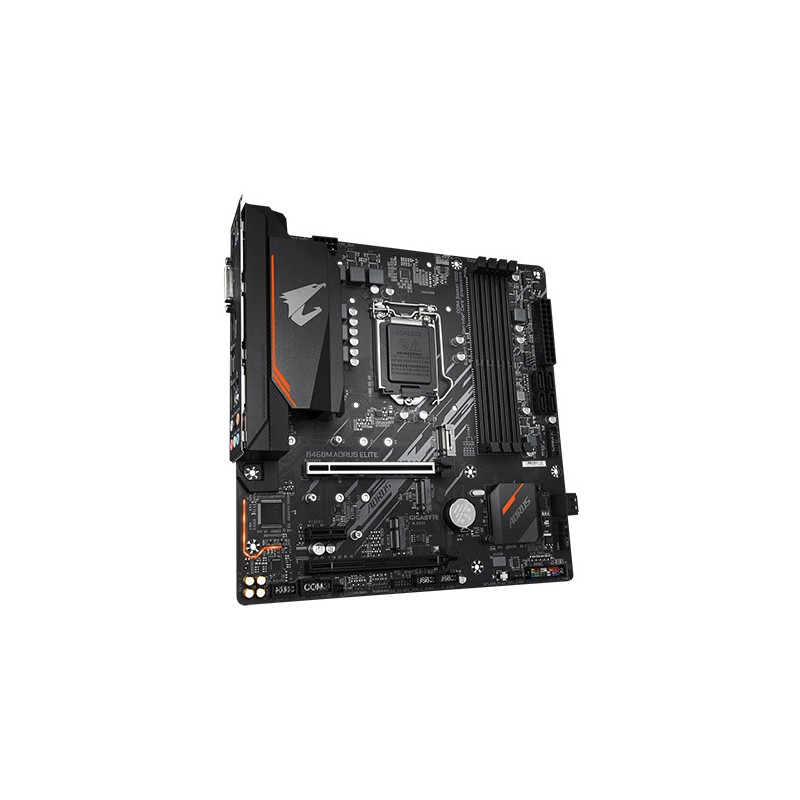

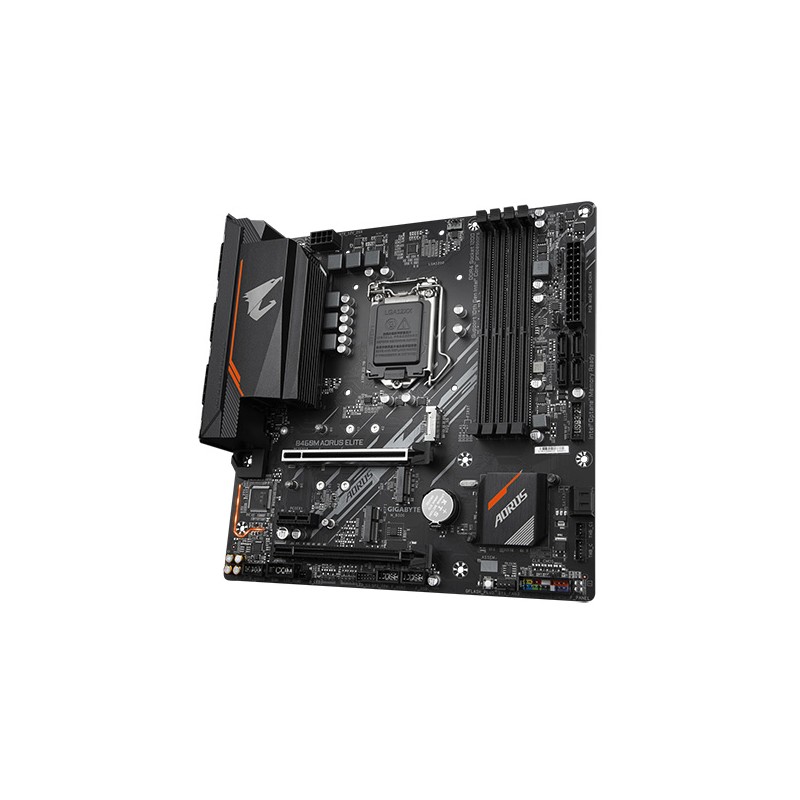

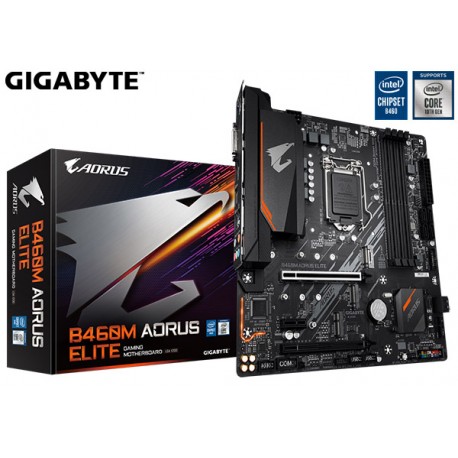

M.B. GIGABYTE B460M AORUS ELITE (LGA1200) (Intel® Core ™ de 10a generación)

B460M AORUS ELITE

Nuevo

Intel ® B460 AORUS placa base con RGB Fusión 2.0 con LED Digital, Intel ® GbE LAN con cFosSpeed, diseño térmico avanzado con ampliada del disipador de calor, Ultra Durable PCIe armadura, USB 3.2 Gen1 tipo C, las ranuras de dos M.2, M.2 E- Ranura para llave para módulo PCIe WIFI Actualizable

  • Admite procesadores de la serie Intel®  Core ™ de décima generación
  • DDR4 sin búfer no ECC de doble canal, 4 DIMM
  • Diseño térmico avanzado con disipador de calor ampliado
  • Blindaje de metal PCIe Ultra Durable ™ exclusivo
  • Conectores duales NVMe PCIe PCIe 3.0 X4 M.2
  • Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
  • Blazing Fast Intel ®  GbE LAN con cFosSpeed
  • Intel ®  USB 3.2 Gen1 tipo C Support ™
  • Ranura para llave electrónica M.2 para módulo WIFI PCIe actualizable
  • Audio AMP-UP con ALC1200 con condensadores de audio Nichicon MW
  • RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras de LED direccionables y RGB
  • IO Shield preinstalado para una instalación fácil y rápida
  • Q-Flash Plus actualiza el BIOS sin instalar la CPU 、 Tarjeta de memoria y gráfica

Más detalles

$ 129,000 I.V.A. incluido

-$ 20,000

$ 149,000 I.V.A. incluido

$ 133,515 por PAGO DEBITO / CREDITO / WEBPAY

Más información

  • Procesador
    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    2. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® B460 Express Chipset
  • Memoria
    1. Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer to "Memory Support List" for more information.)
  • Gráficos Integrados
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    Support for up to 3 displays at the same time
    Maximum shared memory of 512 MB
  • Audio
    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
  • LAN
    1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
  • Puertos de Expansión
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    4. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
    Supports up to ASPM L1.2 power management protocols.
  • Interfaz de Almacenamiento
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
      2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
      3. 6 x SATA 6Gb/s connectors
      4. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
        * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
      5. Intel® Optane™ Memory Ready * System Acceleration with Intel
    ®
    1.  Optane™ Memory enabled on the M2Q_SB connector only.
    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
  • USB
    Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
    2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    3. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 2 x addressable LED strip headers
    6. 2 x RGB LED strip headers
    7. 6 x SATA 6Gb/s connectors
    8. 2 x M.2 Socket 3 connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 2 x Thunderbolt™ add-in card connectors
    14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    15. 1 x serial port header
    16. 1 x Clear CMOS jumper
    17. 1 x Q-Flash Plus button

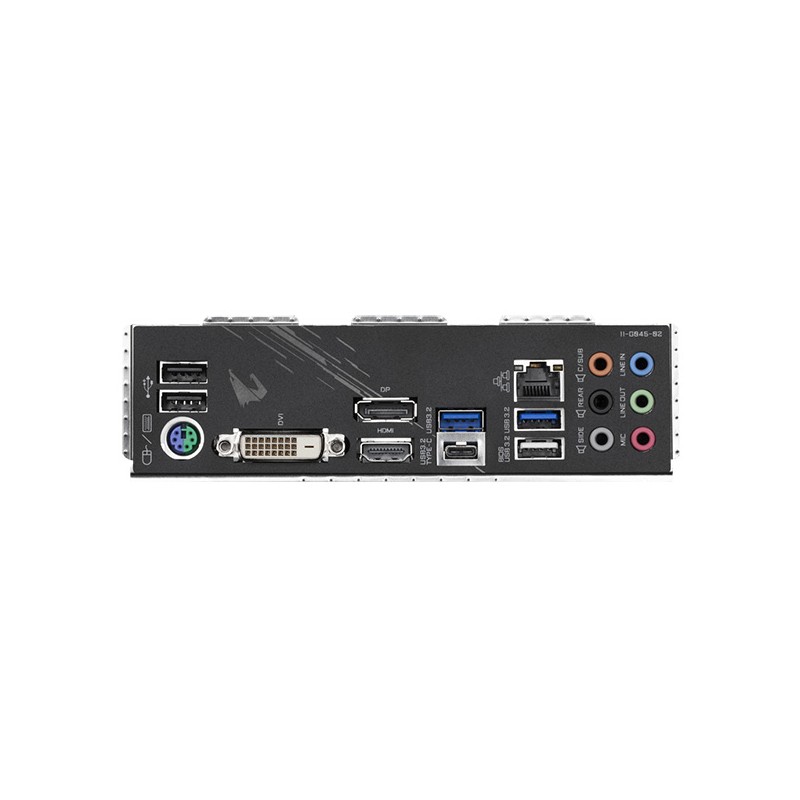

  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-D port
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    6. 3 x USB 3.2 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks
  • Controlador de E/S
    1. iTE® I/O Controller Chip
  • Monitorización H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Características Únicas
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Software Incluido
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Sistema Operativo
    1. Support for Windows 10 64-bit
  • Diseño
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
